20-position, right-angle FPC connector with a 1mm pitch. Features top contact location, bronze contacts with tin plating, and a 500mA current rating. Designed for surface mount termination with a solder connection, operating within a -20°C to 85°C temperature range. This receptacle offers a 50V voltage rating and a UL94 V-0 flammability rating, packaged in tape and reel.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 52793-2070 technical specifications.
General
| Contact Location | Top |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 500mA |
| Depth | 4.8mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Length | 26.3mm |
| Mating Cycles | 10 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 52793 |
| Termination | Solder |
| Voltage Rating | 50V |
| Wire/Cable Type | Straight |
Compliance
| RoHS | Compliant |
Datasheet
Molex 52793-2070 Datasheet
Download the complete datasheet for Molex 52793-2070 to view detailed technical specifications.
No datasheet is available for this part.

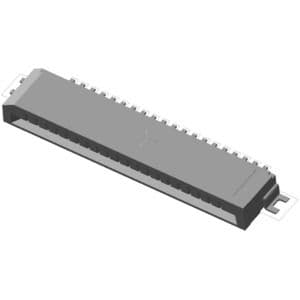

Product Images
