The MicroBlade 53014 connector features 4 positions with a 2mm pitch, suitable for through-hole mounting. It has a maximum operating temperature range of -20°C to 85°C and a maximum voltage rating of 125V AC. The connector is made of bronze with a tin plating and has a natural housing color. It is RoHS compliant and available in bulk packaging.
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 53014-0412 technical specifications.
General
| Color | Red |
| Contact Material | Bronze |
| Contact Mating Length | 0.122inch |
| Contact Plating | Tin |
| Contact Type | Blade Pin |
| Depth | 4.35mm |
| Housing Color | Natural |
| Length | 10mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 125V |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2mm |
| RoHS Compliant | Yes |
| Series | MicroBlade™ 53014 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Molex 53014-0412 Datasheet
Download the complete datasheet for Molex 53014-0412 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

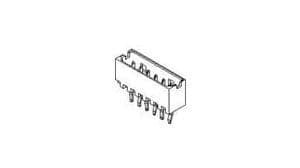

Product Images
