Right-angle male receptacle connector with 4 contacts in a single row, featuring a 2mm pitch and solder termination. This board-to-board component offers a 2A current rating and 125V voltage rating, with a UL94 V-0 flammability rating. Constructed with bronze contacts and tin plating, it operates within a -20°C to 85°C temperature range and is RoHS compliant.
Package0410
Voltage Rating125V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 53015-0410 technical specifications.
General
Package/Case
0410
Color
Natural
Contact Material
Bronze, Tin
Contact Plating
Tin
Current Rating
2A
Flammability Rating
UL94 V-0
Gender
Male
Glow Wire Compliant
Non-compliant
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Mount
Through Hole
Number of Circuits
4
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Right Angle
Package Quantity
1000
Packaging
Bulk
Pitch
2mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
MicroBlade
Termination
Solder
Voltage Rating
125V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Molex 53015-0410 Datasheet
Download the complete datasheet for Molex 53015-0410 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

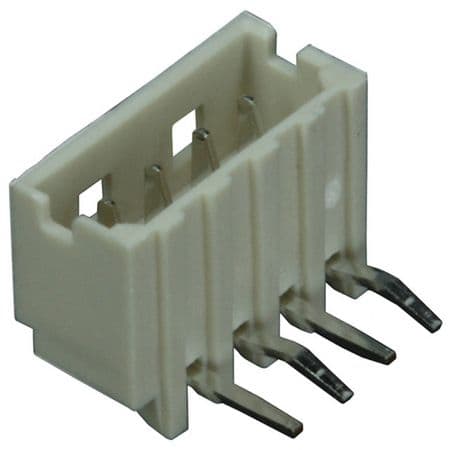

Product Images
