Technical Specifications
Molex 53253-1370 technical specifications.
General
| Color | Natural |
| Contact Finish - Mating | TIN |
| Contact Material | Brass |
| Contact Mating Length | 0.13inch |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Mount | Through Hole |
| Number of Circuits | 13 |
| Number of Positions | 13 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 0.079inch |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | Micro-Latch™ 53253 |
| Termination | Kinked Pin |
Compliance
| RoHS | Compliant |
Datasheet
Molex 53253-1370 Datasheet
Download the complete datasheet for Molex 53253-1370 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

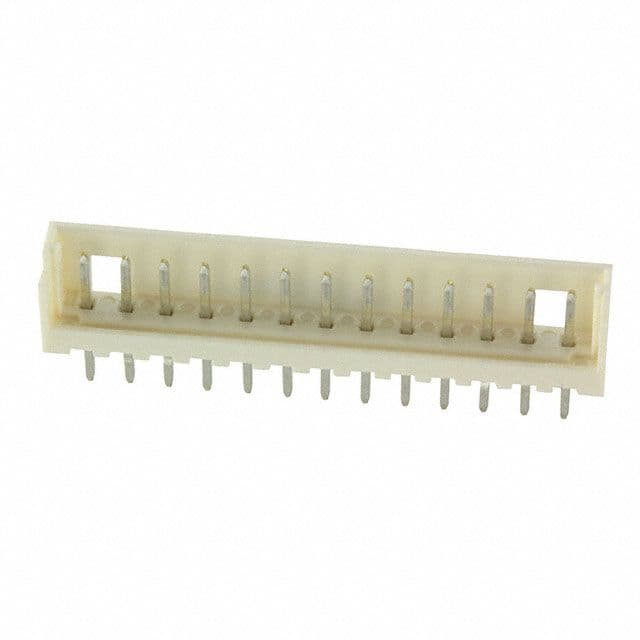

Product Images
