Right angle male receptacle, 3 circuits, 1 row, with a 1.25mm pitch. Features blade pin contacts made of bronze with tin plating, rated for 1A current and 125V AC/DC. Surface mount termination with a locking mechanism and natural colored UL94 V-0 flammability rated housing. Operates within a temperature range of -40°C to 85°C.
Voltage Rating125V
Current Rating1A
MountingSurface Mount, Board
Quick Jump:
Technical Specifications
Molex 53261-0371 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Bronze, Tin |
| Contact Plating | Tin |
| Contact Type | Blade Pin |
| Current Rating | 1A |
| Depth | 5.2mm |
| DIN Conformance | No |
| Filter Feature | No |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| IEC Conformance | No |
| Lead Free | Lead Free |
| Length | 8.9mm |
| Manufacturer Series | 53261 |
| Max Operating Temperature | 85°C |
| MIL Conformance | No |
| Min Operating Temperature | -40°C |
| Mixed Contacts | No |
| Mount | Surface Mount, Board |
| Mounting Style | STRAIGHT |
| Number of Circuits | 2 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Number of Rows Loaded | 1 |
| Option | General Purpose |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| Pitch | 1.25mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PicoBlade |
| Termination | Solder |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Working Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 53261-0371 Datasheet
Download the complete datasheet for Molex 53261-0371 to view detailed technical specifications.
No datasheet is available for this part.

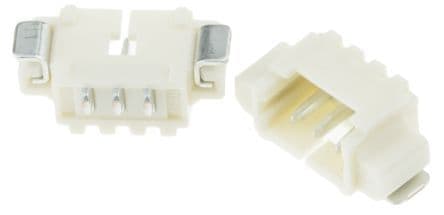

Product Images
