2-circuit, 1-row male header with 1.25mm pitch for surface mount applications. Features blade pin contacts with tin plating, rated for 1A current and 125V voltage. Constructed with a natural, UL94 V-0 flammability rated insulator, this lead-free component offers a locking mechanism and operates within a -40°C to 85°C temperature range.
Voltage Rating125V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 53398-0271 technical specifications.
General
| Color | Natural |
| Contact Material | Bronze, Brass, Tin |
| Contact Plating | Tin |
| Contact Type | Blade Pin |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Pitch | 1.25mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PicoBlade |
| Termination | Solder |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Working Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 53398-0271 Datasheet
Download the complete datasheet for Molex 53398-0271 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

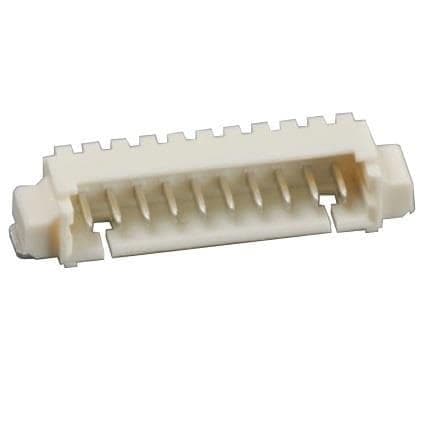

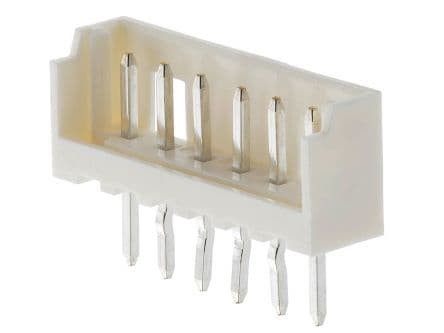

Product Images
