8-circuit, 1-row, male, straight, 1.25mm pitch board connector with a surface mount terminal and locking feature. Features tin-plated bronze and brass contacts for 1A current rating and 250V AC voltage rating. Nylon insulation in natural color, with a maximum operating temperature of 85°C. Designed for vertical orientation and solder termination.
Voltage Rating125V
Current Rating1A
MountingSurface Mount, Through Hole
Quick Jump:
Technical Specifications
Molex 53398-0871 technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Bronze, Brass, Tin |
| Contact Plating | Tin |
| Contact Shape | Rectangular |
| Contact Type | Blade Pin |
| Current Rating | 1A |
| Depth | 3.7mm |
| Height | 11.81mm |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 15.15mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Surface Mount, Through Hole |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Pitch | 1.25mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PicoBlade |
| Termination | Solder |
| Voltage Rating | 125V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 53398-0871 Datasheet
Download the complete datasheet for Molex 53398-0871 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

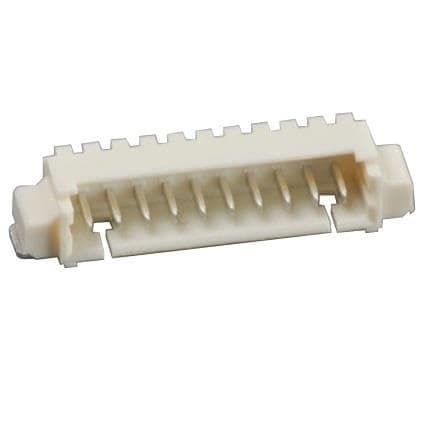

Product Images
