2.00mm pitch dual-row vertical wire-to-board header, featuring 24 circuits and through-hole mounting. Constructed with brass contacts plated in tin/lead, this male connector offers a 3A current rating and a 250V voltage rating. The housing is made from glass and polyester, achieving UL94 V-0 flammability. Designed for 30 mating cycles, it operates within a temperature range of -25°C to 85°C.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 55917-2410 technical specifications.
General
| Color | White |
| Contact Material | Brass |
| Contact Plating | Tin, Lead |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Lead Pitch | 2mm |
| Material | Glass, Polyester |
| Mating Cycles | 30 |
| Max Current Rating | 3A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Through Hole |
| Number of Circuits | 24 |
| Number of Contacts | 24 |
| Number of Poles | 24 |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 450 |
| Packaging | Tray |
| Pitch | 2mm |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | 55917 |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 55917-2410 Datasheet
Download the complete datasheet for Molex 55917-2410 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

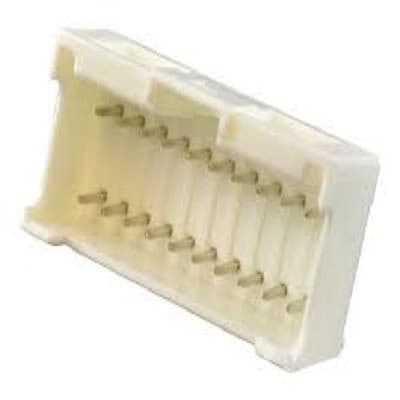

Product Images
