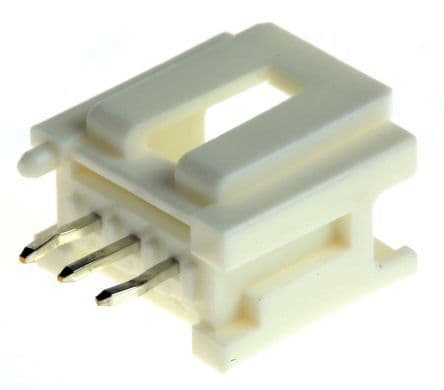

3-contact, 1-row male header connector with a 2mm pitch. Features straight, through-hole mounting with solder termination and a locking mechanism. Rated for 3A current and 250V voltage, operating between -25°C and 85°C. Constructed with brass contacts plated in tin and a polyester housing with UL94 V-0 flammability.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 55932-0310 technical specifications.
General
| Color | White |
| Contact Material | Brass |
| Contact Plating | Tin, Lead |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Lead Pitch | 2mm |
| Material | Glass, Polyester |
| Mating Cycles | 30 |
| Max Current Rating | 3A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 3600 |
| Packaging | Tray |
| Pitch | 2mm |
| Plating | Tin |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 55932 |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
