Right-angle male header connector featuring 18 positions across 2 rows with a 2mm pitch. This through-hole mount component offers a 3A current rating and 250V voltage rating, constructed with brass contacts plated in tin/lead and a white polyester insulator. Designed for 30 mating cycles, it operates within a -25°C to 85°C temperature range and meets UL94 V-0 flammability standards.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 55959-1830 technical specifications.
General
| Color | White |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin, Lead |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Lead Pitch | 2mm |
| Material | Glass, Polyester |
| Mating Cycles | 30 |
| Max Current Rating | 3A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Circuits | 18 |
| Number of Contacts | 18 |
| Number of Poles | 18 |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 400 |
| Packaging | Tray |
| Pitch | 2mm |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Row Spacing | 2.5mm |
| Series | 55959 |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 55959-1830 Datasheet
Download the complete datasheet for Molex 55959-1830 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

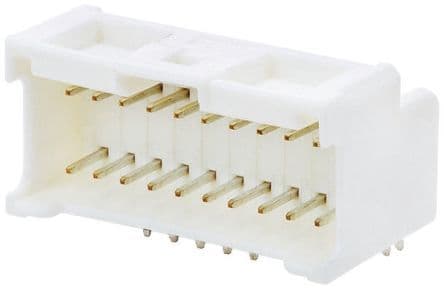

Product Images
