Surface mount male pin header with 5 positions and 5 circuits, featuring a 2mm pitch. This straight, single-row connector offers a 3A current rating and 125V voltage rating. Contacts are made of copper alloy with tin plating for mating. The nylon housing is natural colored, and the component operates between -40°C and 105°C.
Voltage Rating125V
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 560020-0500 technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Depth | 9.15mm |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Length | 16.6mm |
| Mated Stacking Heights | 9.3mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 650 |
| Packaging | Tape and Reel |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | DuraClik 560020 |
| Termination | Solder |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 560020-0500 Datasheet
Download the complete datasheet for Molex 560020-0500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

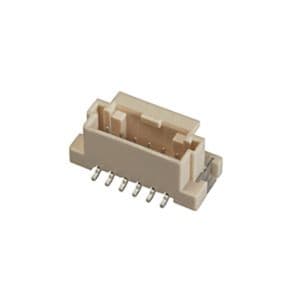

Product Images
