Technical Specifications
Molex 6-141 technical specifications.
General
Contact Material
Brass
Contact Plating
Nickel
Current Rating
20A
Depth
12.7mm
Length
85.72mm
Material
Phenolic
Max Current Rating
20A
Max Operating Temperature
148°C
Min Operating Temperature
-48°C
Max Supply Voltage (AC)
250V
Max Voltage Rating (AC)
250V
Number of Contacts
6
Number of Rows
2
Orientation
Straight
Pitch
11.13mm
Radiation Hardening
No
Reach SVHC Compliant
No
Series
141
Termination
Screw
Voltage Rating
250V
Width
28.58mm
Wire/Cable Gauge
14AWG
Compliance
RoHS
Compliant
Datasheet
Molex 6-141 Datasheet
Download the complete datasheet for Molex 6-141 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

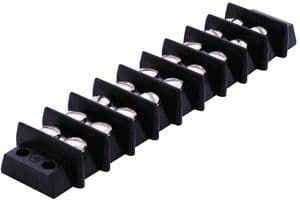

Product Images
