48-position, 3-row straight receptacle with nylon and polyamide body material. Features a 6A current rating and 250V AC max voltage rating, operating within a -40°C to 125°C temperature range. Termination is crimp, with polyester material. Supplied in bulk packaging with 1200 units per package. RoHS compliant and low halogen.
Voltage Rating14V
Current Rating6A
Quick Jump:
Technical Specifications
Molex 64320-1301 technical specifications.
General
| Body Material | Nylon, Polyamide |
| Color | Black |
| Contact Type | Receptacle |
| Current Rating | 6A |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 24mm |
| Material | Polyester |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Number of Contacts | 48 |
| Number of Positions | 48 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 1200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 64320 |
| Termination | Crimp |
| Voltage Rating | 14V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 64320-1301 Datasheet
Download the complete datasheet for Molex 64320-1301 to view detailed technical specifications.
No datasheet is available for this part.

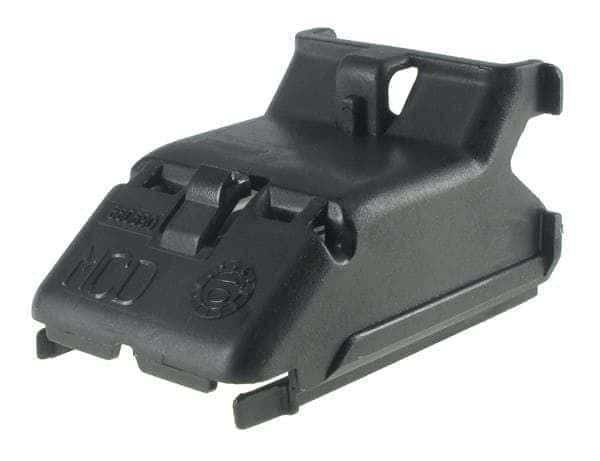

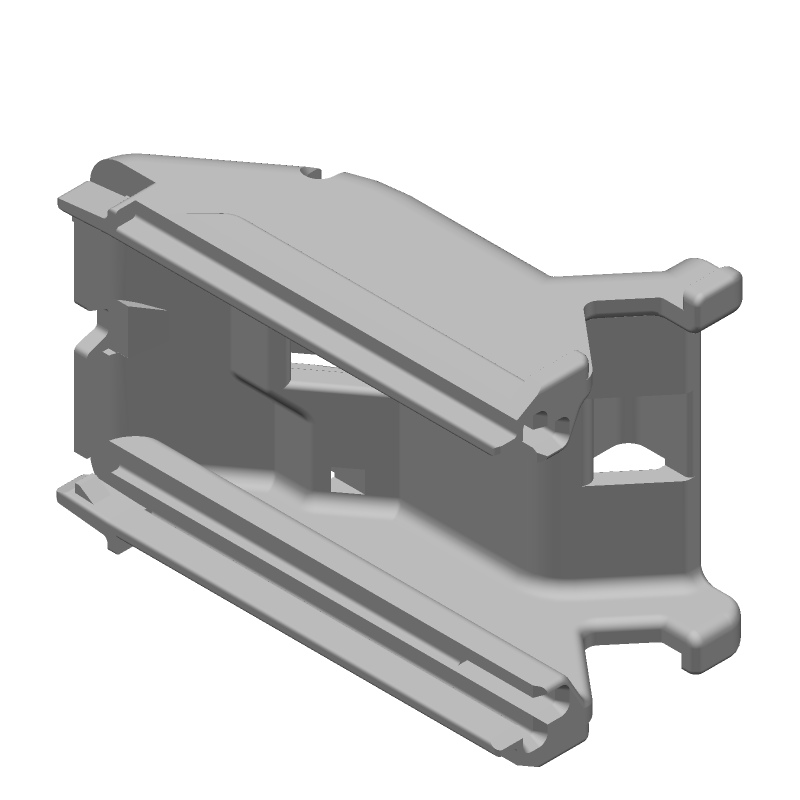

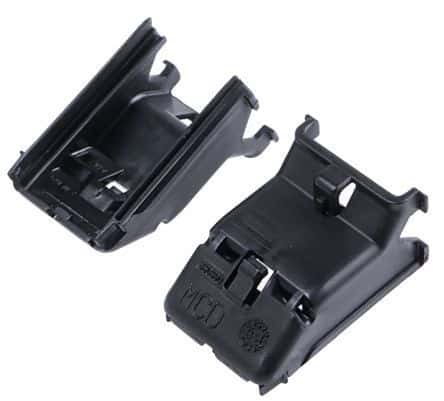

Product Images
