USB 2.0 Type B receptacle, right-angle, through-hole mount, featuring 4 circuits and 4 contacts with a 2.5mm pitch. This female connector offers a 1.5A current rating and a 30V voltage rating, with gold-plated bronze contacts and tin plating. Operating temperature range is 0°C to 50°C.
Voltage Rating30V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 67068-8011 technical specifications.
General
Color
White
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1.5A
Depth
17mm
Gender
Female
Length
12mm
Max Operating Temperature
50°C
Min Operating Temperature
0°C
Max Voltage Rating (AC)
30V
Mount
Through Hole
Number of Circuits
4
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Number of Rows
2
Orientation
Right Angle
Packaging
Tray
Pitch
2.5mm
Plating
Tin
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
67068
Termination
Through Hole
USB Standard
USB 2.0
Voltage Rating
30V
Compliance
RoHS
Compliant
Datasheet
Molex 67068-8011 Datasheet
Download the complete datasheet for Molex 67068-8011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

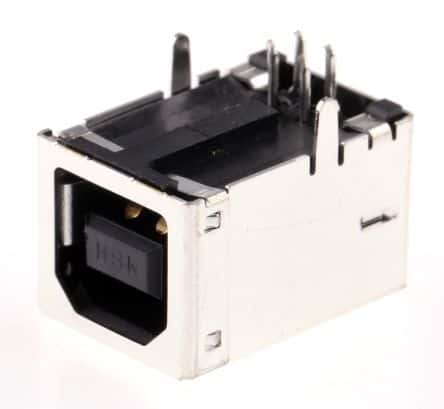

Product Images
