Technical Specifications

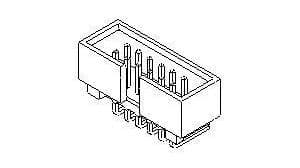

Molex 70247-1454 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 2.5A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Material | Polyester |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -55°C |
| Number of Circuits | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 768 |
| Packaging | Tray |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | 70247 |
| Termination | Through Hole |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 70247-1454 Datasheet
Download the complete datasheet for Molex 70247-1454 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
