Technical Specifications
Molex 70984-1007 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Halogen Free | Low Halogen |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Number of Circuits | 15 |
| Number of Contacts | 15 |
| Number of Ports | 1 |
| Number of Positions | 15 |
| Orientation | Vertical |
| Package Quantity | 759 |
| Packaging | Tray |
| Pitch | 1.27mm |
| Reach SVHC Compliant | Unknown |
| Series | 70984 |
| Termination | Through Hole |
| Voltage Rating | 40V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 70984-1007 Datasheet
Download the complete datasheet for Molex 70984-1007 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

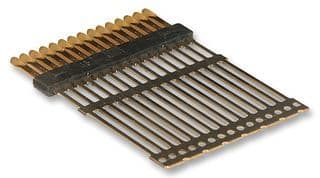

Product Images
