Right-angle, female RF connector designed for 75-ohm impedance and operation up to 4GHz. Features a zinc alloy body with nickel plating and gold-plated bronze contacts. This panel and board mount receptacle utilizes a solder terminal for secure termination. Constructed with polypropylene insulation and a low halogen, lead-free body.
Frequency4GHz
MountingBulkhead, Through Hole
PolarityStandard, Normal
Quick Jump:
Technical Specifications
Molex 73100-0080 technical specifications.
General
Body Material
ZINC ALLOY
Body Plating
Nickel
Contact Material
Bronze
Contact Plating
Gold
Depth
14.76mm
Gender
Female
Halogen Free
Low Halogen
Impedance
75R
Insulation Material
Polypropylene
Lead Free
Lead Free
Length
35.43mm
Max Frequency
4GHz
Mount
Bulkhead, Through Hole
Operating Frequency
N/A
Orientation
Right Angle
Package Quantity
336
Packaging
Tray
Plating
Nickel
Polarity
Standard, Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
73100
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Molex 73100-0080 Datasheet
Download the complete datasheet for Molex 73100-0080 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

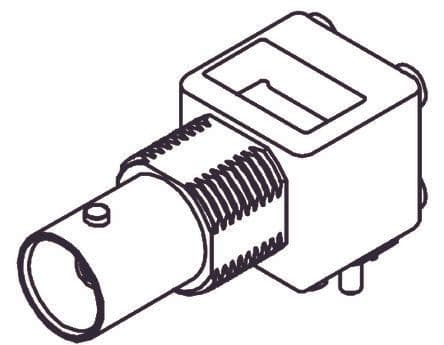

Product Images
