150-position, right-angle female backplane connector with a 1.9mm pitch. Features copper alloy contacts with gold and tin plating, designed for 25Gbps data rates and 100-ohm impedance. Thermoplastic housing in black, suitable for through-hole mounting with solder termination. Operates within a temperature range of -55°C to 85°C and has a 30V AC maximum voltage rating. Supplied in tray packaging.
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 76060-5166 technical specifications.
General
Color
Black
Contact Material
Copper Alloy
Contact Plating
Gold, Tin
Data Rate
25Gbps
Depth
32.21mm
ELV
Compliant
Gender
Female
Housing Color
Black
Impedance
100R
Length
38mm
Material
Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
30V
Mount
Through Hole
Number of Circuits
150
Number of Columns
16
Number of Pairs
5
Number of Rows
15
Orientation
Right Angle
Packaging
Tray
Pitch
1.9mm
Plating
Tin
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Press-Fit
Compliance
RoHS
Compliant
Datasheet
Molex 76060-5166 Datasheet
Download the complete datasheet for Molex 76060-5166 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

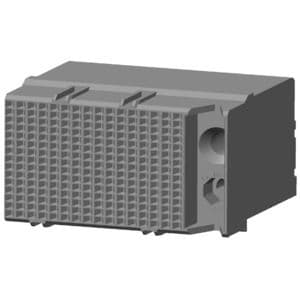

Product Images
