Technical Specifications
Molex 76290-1022 technical specifications.
General
| Contact Plating | Tin, Gold |
| ELV | Compliant |
| Gender | Female |
| Halogen Free | Low Halogen |
| Material | Thermoplastic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 3.03kV |
| Mount | Through Hole |
| Number of Circuits | 216 |
| Number of Contacts | 216 |
| Orientation | Right Angle |
| Packaging | Tray |
| Pitch | 1.9mm |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | Press-Fit |
Compliance
| RoHS | Compliant |
Datasheet
Molex 76290-1022 Datasheet
Download the complete datasheet for Molex 76290-1022 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

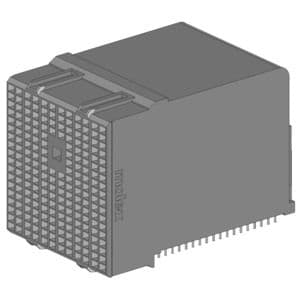

Product Images
