Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications

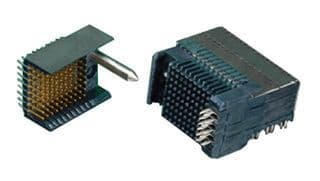

Molex 76761-9001 technical specifications.
General
Contact Material
Copper Alloy
Contact Plating
Gold
Current Rating
1A
Gender
Male
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
120.12kV
Mount
Through Hole
Number of Circuits
60
Number of Columns
10
Number of Contacts
60
Number of Positions
60
Number of Rows
6
Orientation
Straight
Package Quantity
76
Packaging
Rail/Tube
Pitch
2mm
RoHS Compliant
Yes
Series
76761
Termination
Solder
Voltage Rating (AC)
120V
Compliance
RoHS
Compliant
Datasheet
Molex 76761-9001 Datasheet
Download the complete datasheet for Molex 76761-9001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
