Technical Specifications

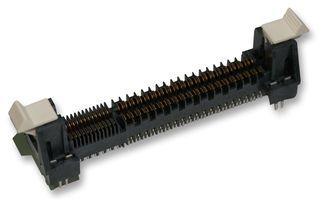

Molex 78086-0001 technical specifications.
General
| Color | Black |
| Contact Material | Copper |
| Contact Plating | Gold |
| Current Rating | 6A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Material | Liquid Crystal Polymer |
| Mating Cycles | 25 |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Number of Circuits | 240 |
| Number of Contacts | 100 |
| Number of Rows | 2 |
| Orientation | Straight |
| Termination | SMD/SMT |
| Voltage Rating (AC) | 48V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 78086-0001 Datasheet
Download the complete datasheet for Molex 78086-0001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
