Receptacle board connector featuring 2 contacts in a single row with a 1.2mm pitch. This straight, female connector utilizes copper alloy contacts with gold plating and supports a 1.5A current rating. Designed for crimp termination, it offers a 50V AC and 5.05kV DC voltage rating, operating between -25°C and 85°C. The connector is low halogen, RoHS compliant, and comes in bulk packaging.
Current Rating1.5A
Quick Jump:
Technical Specifications
Molex 78172-0002 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 3.5mm |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 5.05kV |
| Number of Circuits | 6 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 5000 |
| Packaging | Bulk |
| Pitch | 1.2mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Pico-Ezmate |
| Termination | Crimp |
| Voltage Rating (AC) | 50V |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 78172-0002 Datasheet
Download the complete datasheet for Molex 78172-0002 to view detailed technical specifications.
No datasheet is available for this part.

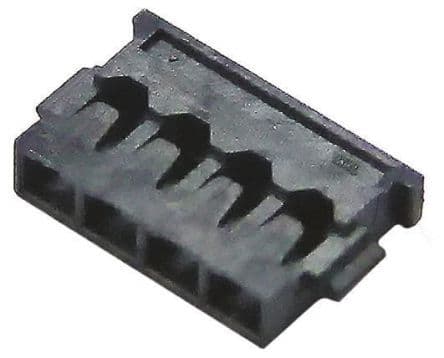

Product Images
