RJ11 modular connector, right-angle orientation, featuring 6 circuits and 6 contacts. Contact material is copper alloy with gold plating. This surface mount component has a 2.54mm pitch, 15V DC voltage rating, and 500mA current rating. Operating temperature range is -30°C to 85°C.
Voltage Rating15V
Current Rating500mA
MountingStandard, Surface Mount
Quick Jump:
Technical Specifications
Molex 78646-3001 technical specifications.
General
| Contact Material | Copper Alloy, Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 15.45mm |
| ELV | Compliant |
| Gender | Female |
| Halogen Free | Low Halogen |
| Height | 1.45mm |
| Length | 13.05mm |
| Material | Bronze |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 15V |
| Mount | Standard, Surface Mount |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Rows | 4 |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| Series | 78646 |
| Termination | SMD/SMT |
| Voltage Rating | 15V |
| DC Rated Voltage | 15V |
| Weight | 0.008572oz |
Compliance
| RoHS | Compliant |
Datasheet
Molex 78646-3001 Datasheet
Download the complete datasheet for Molex 78646-3001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

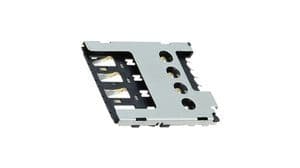

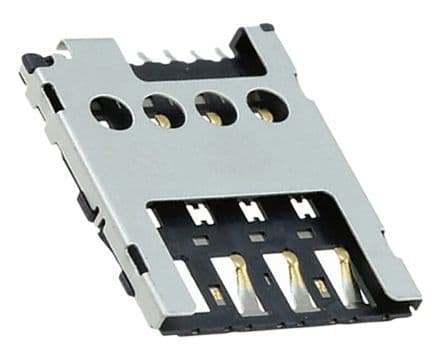

Product Images
