24-position, 2-row female receptacle connector with a 2mm pitch. Features gold-plated bronze contacts for reliable termination via solder. Rated for 1A current and 125V AC, operating between -55°C and 105°C. This low halogen, lead-free component has a black insulator and is RoHS compliant.
Voltage Rating125V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 79107-7011 technical specifications.
General
| Color | Black |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Current Rating | 1A |
| Depth | 4.19mm |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 125V |
| Mount | Through Hole |
| Number of Circuits | 24 |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.079inch |
| Series | Milli-Grid™ 79107 |
| Termination | Solder |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 79107-7011 Datasheet
Download the complete datasheet for Molex 79107-7011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

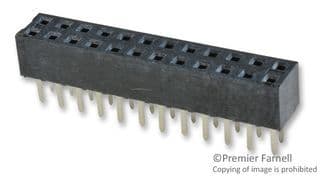

Product Images
