Technical Specifications
Molex 8-140 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Nickel |
| Length | 92.88mm |
| Max Current Rating | 15A |
| Max Operating Temperature | 148°C |
| Min Operating Temperature | -48°C |
| Max Supply Voltage (AC) | 250V |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Screw |
| Number of Circuits | 8 |
| Number of Contacts | 16 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Pitch | 9.53mm |
| Reach SVHC Compliant | No |
| Series | 140 |
| Termination | Screw |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 8-140 Datasheet
Download the complete datasheet for Molex 8-140 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

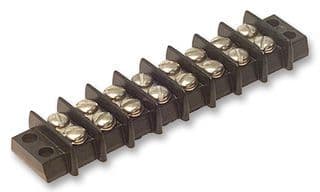

Product Images
