Technical Specifications
Molex 85052-0036 technical specifications.
General
| Current Rating | 1A |
| Gender | Female |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Circuits | 96 |
| Number of Contacts | 96 |
| Number of Positions | 96 |
| Number of Rows | 3 |
| Orientation | Right Angle |
| Package Quantity | 500 |
| Packaging | Tray |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | 85052 |
| Termination | Solder |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 85052-0036 Datasheet
Download the complete datasheet for Molex 85052-0036 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

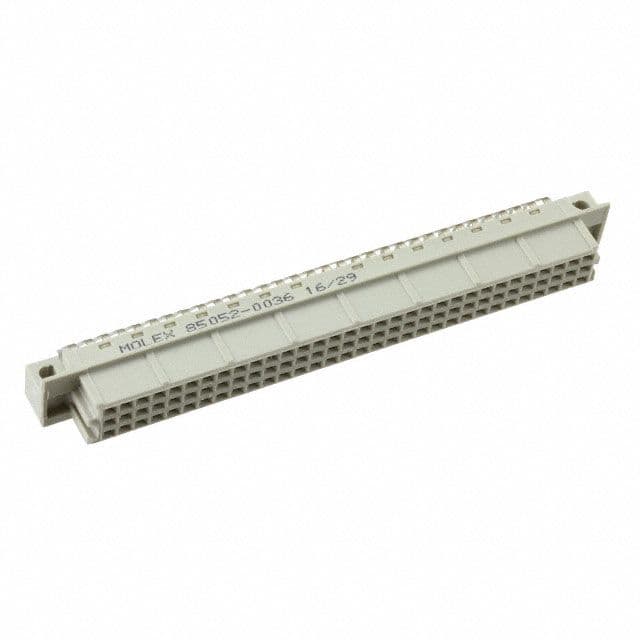

Product Images
