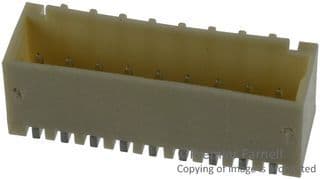

Right angle male header connector with 9 contacts in a single row, featuring a 1.5mm pitch and surface mount termination. This 2.5A, 350V DC rated component utilizes brass contacts with tin plating and a beige insulator. Designed for board-to-board applications, it operates within a temperature range of -55°C to 105°C and meets UL94 V-0 flammability standards.
Voltage Rating250V
Current Rating2.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 87438-0943 technical specifications.
General
| Color | Beige |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Mating Length | 0.106inch |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Current Rating | 2.5A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Beige |
| Lead Free | Contains Lead |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 350V |
| Mount | Surface Mount |
| Number of Circuits | 9 |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 1.5mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Pico-SPOX™ 87438 |
| Termination | Solder |
| Voltage Rating | 250V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 87438-0943 Datasheet
Download the complete datasheet for Molex 87438-0943 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
