Vertical board-to-board connector, 6 circuits, 2 rows, male, straight orientation, featuring a 2mm pitch and solder termination. This receptacle offers a 2A current rating and 125V DC voltage rating, with gold-plated brass/bronze contacts. The black insulator is UL94 V-0 flammability rated and operates within a -55°C to 105°C temperature range. Through-hole mounting and a locking feature are included.
Voltage Rating125V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 87831-0620 technical specifications.
General
| Color | Black |
| Contact Material | Brass, Bronze |
| Contact Plating | Gold |
| Current Rating | 2A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 1860 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 87831 |
| Termination | Solder |
| Voltage Rating | 125V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 87831-0620 Datasheet
Download the complete datasheet for Molex 87831-0620 to view detailed technical specifications.
No datasheet is available for this part.

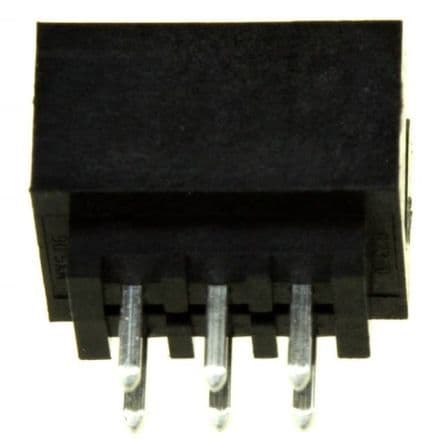

Product Images
