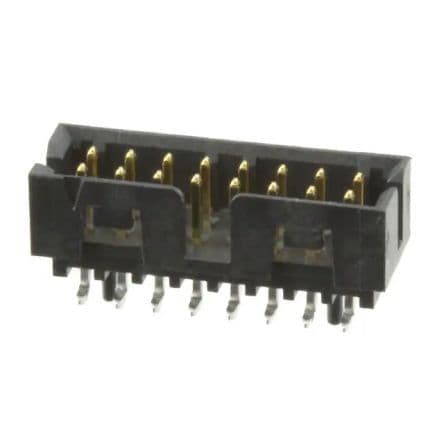

This male receptacle board connector features 16 contacts arranged in 2 rows with a 2mm pitch. Designed for surface mount termination, it offers a 2A current rating and 125V voltage rating. The connector has a straight, vertical orientation and a black housing with gold-plated bronze contacts. Operating within a temperature range of -55°C to 105°C, this RoHS-compliant component is supplied on tape and reel.
Voltage Rating125V
Current Rating2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 87832-5722 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Mating Length | 3.6mm |
| Contact Plating | Gold |
| Current Rating | 2A |
| Depth | 6.3mm |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Black |
| Length | 18.65mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 16 |
| Number of Contacts | 16 |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Packaging | Tape and Reel |
| Pitch | 2mm |
| Plating | Tin |
| RoHS Compliant | Yes |
| Row Spacing | 2mm |
| Series | 87832 |
| Termination | Solder |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 87832-5722 Datasheet
Download the complete datasheet for Molex 87832-5722 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
