Technical Specifications
Molex 87898-0426 technical specifications.
General
| Package/Case | SMD/SMT |
| Contact Plating | Tin |
| Current Rating | 3A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Glow Wire Compliant | Non-compliant |
| Material | Copper Alloy |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1650 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | 87898 |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Molex 87898-0426 Datasheet
Download the complete datasheet for Molex 87898-0426 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

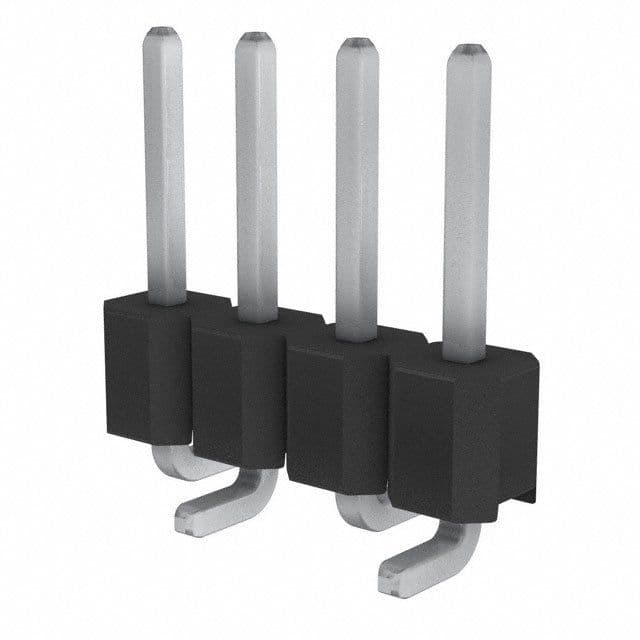

Product Images
