This 4-position shielded USB cable assembly from Molex features a grey color and a maximum current rating of 1A. It is designed for use with USB applications and has a voltage rating of 30V. The cable assembly is constructed with 28AWG wire and has a length of 2.08 meters. It is packaged in bulk and is lead-free compliant.
Voltage Rating30V
Current Rating1A
Quick Jump:
Technical Specifications
Molex 88728-3400 technical specifications.
General
| Color | Grey |
| Connector Type A | USB, Plug |
| Current Rating | 1A |
| Gender | Male |
| Lead Free | Lead Free |
| Length | 2.08m |
| Max Current Rating | 1A |
| Number of Circuits | 4 |
| Number of Conductors | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Packaging | Bulk |
| Primary Type | CABLE ASSEMBLY |
| Reach SVHC Compliant | Unknown |
| Series | 88740 |
| Shielding | Shielded |
| Voltage Rating | 30V |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | USB, Round |
Compliance
| RoHS | Compliant |
Datasheet
Molex 88728-3400 Datasheet
Download the complete datasheet for Molex 88728-3400 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

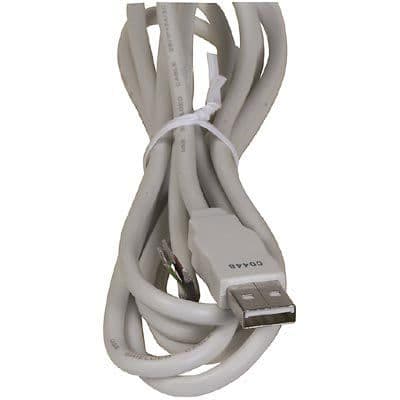

Product Images
