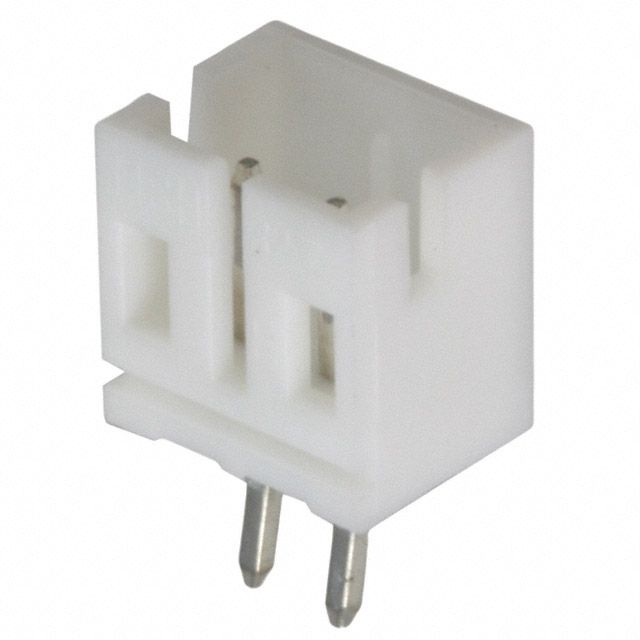

Board connector featuring a 2-contact, 1-row configuration with a 2mm pitch. This male, straight header offers solder termination and a through-hole mount design. It boasts a 4A current rating and a 250V voltage rating, operating within a temperature range of -25°C to 85°C. The brass contacts are plated with tin and copper, and the natural insulator meets UL94 V-0 flammability standards.
Voltage Rating250V
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 89400-0220 technical specifications.
General
Color
Natural
Contact Material
Brass
Contact Plating
Tin, Copper
Current Rating
4A
Flammability Rating
UL94 V-0
Gender
Male
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Circuits
15
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
9000
Packaging
Bulk
Pitch
2mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
89400
Termination
Solder
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
