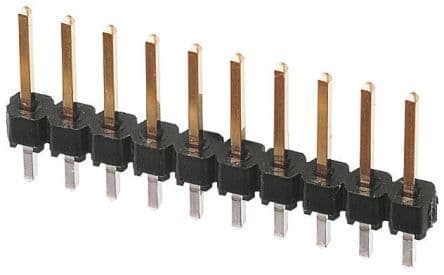

This 9-contact, single-row male header features a 2.54mm pitch and straight, through-hole mounting for board-to-board applications. Constructed with brass contacts and gold/tin plating, it offers a 3A current rating and a maximum operating temperature of 125°C. The black insulator housing is lead-free and RoHS compliant, with a solder termination type.
Voltage Rating350V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90120-0129 technical specifications.
General
Color
Black
Contact Material
Brass
Contact Mating Length
0.266inch
Contact Plating
Gold, Tin
Contact Type
Male Pin
Current Rating
3A
Gender
Male
Glow Wire Compliant
Non-compliant
Housing Color
Black
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
350.35kV
Mount
Through Hole
Number of Circuits
9
Number of Contacts
9
Number of Positions
9
Number of Rows
1
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C-Grid III™ 90120
Termination
Solder
Voltage Rating
350V
DC Rated Voltage
350V
Compliance
RoHS
Compliant
Datasheet
Molex 90120-0129 Datasheet
Download the complete datasheet for Molex 90120-0129 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
