20-position, 2-row right-angle header with 2.54mm (0.1 inch) pitch. Features male pin contacts made of brass with gold plating, offering a 3A current rating and 350V voltage rating. The black polyester and glass housing supports through-hole mounting and solder termination, operating within a -55°C to 125°C temperature range.
Voltage Rating350V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90122-0770 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Mating Length | 0.266inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Material | Glass, Polyester |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 20 |
| Number of Poles | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | C-Grid III |
| Termination | Solder |
| Voltage Rating | 350V |
| Voltage Rating (AC) | 350V |
| Working Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 90122-0770 Datasheet
Download the complete datasheet for Molex 90122-0770 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

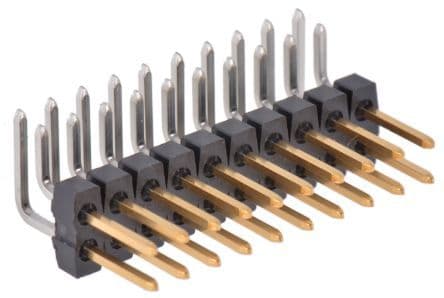

Product Images
