24-position, 2-row male header with a 2.54mm (0.1 inch) pitch. Features brass/copper alloy contacts with gold plating, a 3A current rating, and a 350V voltage rating. This straight, through-hole mounted connector has a black polyester/glass insulator and a solder termination. Designed for board-to-board applications, it operates within a temperature range of -55°C to 125°C and is RoHS compliant.
Voltage Rating350V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90130-1224 technical specifications.
General
| Color | Black |
| Contact Material | Brass, Copper Alloy, Copper |
| Contact Mating Length | 0.266inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Depth | 9.75mm |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Length | 33.2mm |
| Material | Glass, Polyester |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 350V |
| Max Voltage Rating (DC) | 350.35kV |
| Mount | Through Hole |
| Number of Circuits | 24 |
| Number of Contacts | 24 |
| Number of Poles | 24 |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | C-Grid III |
| Termination | Solder |
| Voltage Rating | 350V |
| Voltage Rating (AC) | 350V |
| DC Rated Voltage | 350V |
| Working Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 90130-1224 Datasheet
Download the complete datasheet for Molex 90130-1224 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

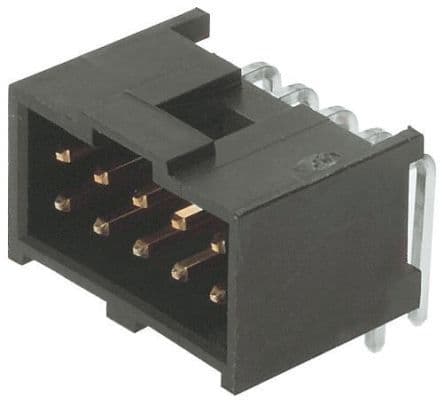

Product Images
