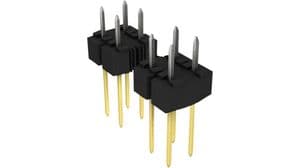

26-position, 2-row male header with a 2.54mm (0.1 inch) pitch. Features straight, through-hole mounting with solder termination. Constructed with a black polyester insulator and copper alloy/brass contacts plated with gold for enhanced conductivity. Rated for 3A current and 350V voltage, operating between -55°C and 125°C.
Voltage Rating350V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90131-0773 technical specifications.
General
Color
Black
Contact Material
Copper Alloy, Brass
Contact Mating Length
0.266inch
Contact Plating
Gold
Contact Type
Male Pin
Current Rating
3A
Gender
Male
Housing Color
Black
Insulation Material
Polyester
Lead Free
Lead Free
Lead Pitch
2.54mm
Material
Glass, Polyester
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Circuits
26
Number of Contacts
26
Number of Poles
26
Number of Positions
26
Number of Rows
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Plating
Tin
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
C-Grid III
Termination
Solder
Voltage Rating
350V
Voltage Rating (AC)
350V
DC Rated Voltage
350V
Working Voltage
350V
Compliance
RoHS
Compliant
