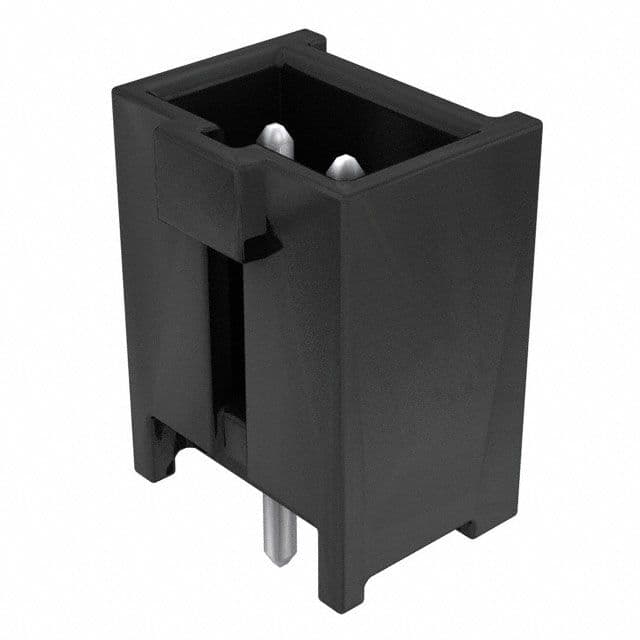

2-circuit, 1-row male header connector with a 2.54mm pitch. Features brass contacts with tin-lead plating, rated for 3A and 350V AC/DC. This vertical, through-hole mount receptacle has a black insulator and a solder terminal. Operating temperature range is -55°C to 125°C.
Voltage Rating350V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90136-1102 technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin, Lead |
| Current Rating | 3A |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Black |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 350V |
| Max Voltage Rating (DC) | 350.35kV |
| Mount | Through Hole |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 3040 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 90136 |
| Termination | Through Hole |
| Voltage Rating | 350V |
| Voltage Rating (AC) | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 90136-1102 Datasheet
Download the complete datasheet for Molex 90136-1102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
