Right-angle male header connector with 5 contacts in a single row, featuring a 2.54mm pitch. Brass contacts with tin plating offer 3A current rating and 350V voltage rating (AC/DC). Solder termination and through-hole mounting facilitate secure board-to-board connections. The black insulator housing is lead-free and operates within a -55°C to 125°C temperature range.
Voltage Rating350V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90136-2105 technical specifications.
General
Color
Black
Contact Material
Brass
Contact Mating Length
0.266inch
Contact Plating
Tin
Contact Type
Male Pin
Current Rating
3A
Gender
Male
Glow Wire Compliant
Non-compliant
Housing Color
Black
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
350.35kV
Mount
Through Hole
Number of Circuits
5
Number of Contacts
5
Number of Positions
5
Number of Rows
1
Orientation
Right Angle
Package Quantity
1
Packaging
Tray
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
C-Grid III™ 90136
Termination
Solder
Voltage Rating
350V
Voltage Rating (AC)
350V
Compliance
RoHS
Compliant
Datasheet
Molex 90136-2105 Datasheet
Download the complete datasheet for Molex 90136-2105 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

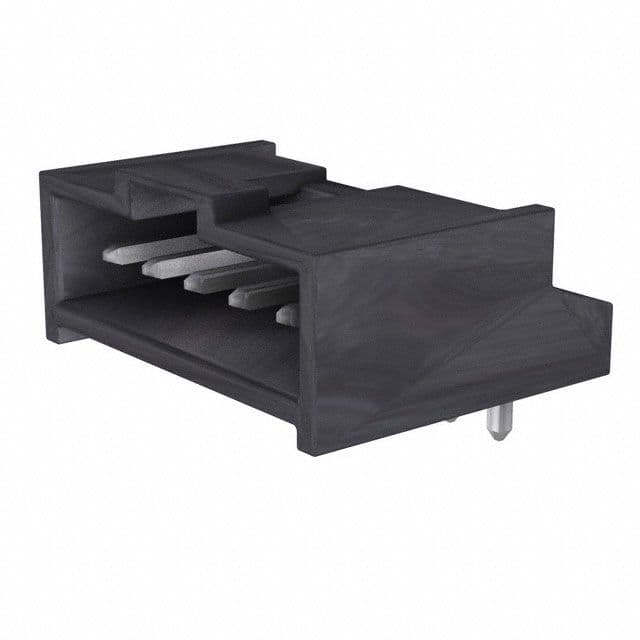

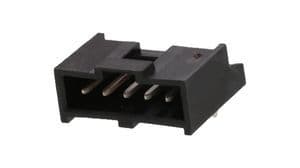

Product Images
