Technical Specifications

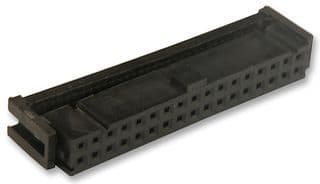

Molex 90635-1343 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1A |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Cable |
| Number of Circuits | 34 |
| Number of Contacts | 34 |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 760 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 90635 |
| Termination | IDT |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 90635-1343 Datasheet
Download the complete datasheet for Molex 90635-1343 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
