10-position, 2-row male header receptacle with a 2.54mm pitch. Features brass contacts with gold plating and a blade pin contact type, rated for 2.4A current and 250V AC/DC voltage. This surface mount component has a straight, vertical orientation and a beige insulator, with a maximum operating temperature of 105°C.
Voltage Rating250V
Current Rating2.4A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 90814-3810 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Mating Length | 0.085inch |
| Contact Plating | Gold |
| Contact Type | Blade Pin |
| Current Rating | 2.4A |
| Depth | 6.9mm |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Beige |
| Length | 16.48mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Surface Mount |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Picoflex® PF-50 90814 |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 90814-3810 Datasheet
Download the complete datasheet for Molex 90814-3810 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

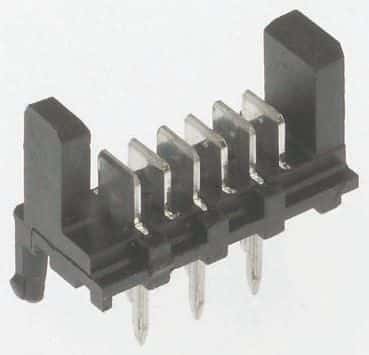

Product Images
