Molex
90816-0012

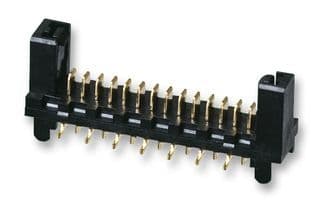

MOLEX 90816-0012 Wire-To-Board Connector, Surface Mount, Header, 12 Contacts, 1.27 mm, Tin Plated Contacts
Voltage Rating250V
Current Rating1.2A
MountingPCB
Quick Jump:
Technical Specifications
Molex 90816-0012 technical specifications.
General
Contact Material
Brass
Contact Plating
Tin
Current Rating
1.2A
Gender
Female
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
PCB
Number of Circuits
12
Number of Contacts
12
Number of Positions
12
Number of Rows
1
Orientation
Vertical
Package Quantity
3744
Packaging
Rail/Tube
Pitch
1.27mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
90816
Termination
Solder
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Molex 90816-0012 Datasheet
Download the complete datasheet for Molex 90816-0012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
