4-way, 250mm ribbon cable assembly featuring 1.27mm pitch IDT connectors on both ends. This female-to-female cable supports a 1.2A current rating and a 250V working voltage. Constructed with PVC jacket material and a 28AWG wire gauge, it operates within a temperature range of -20°C to 105°C and boasts a UL94 V-0 flammability rating.
Voltage Rating250V
Current Rating1.2A
Quick Jump:
Technical Specifications
Molex 92315-0425 technical specifications.
General
Cable Pitch
1.27mm
Color
Natural, Grey
Connector Pitch
1.27mm
Connector Type A
IDT
Connector Type B
IDT
Current Rating
1.2A
Flammability Rating
UL94 V-0
Gender
Female to Female
Jacket Material
PVC
Lead Length
250mm
Length
0.25m
Max Current Rating
1.2A
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
250V
Number of Circuits
4
Number of Conductors
4
Packaging
Bulk
Reach SVHC Compliant
Unknown
Series
92315
Termination
IDT
Voltage Rating
250V
Wire/Cable Gauge
28AWG
Wire/Cable Type
Ribbon, Flat Flex
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Molex 92315-0425 Datasheet
Download the complete datasheet for Molex 92315-0425 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

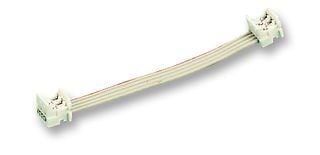

Product Images
