8-position, 1-port female modular Ethernet connector with straight orientation and surface mount terminal. Features a thermoplastic body, black housing, and copper alloy contacts with gold plating. Rated for 1.5A current and 125V DC voltage, operating between -40°C and 85°C. This low halogen, RoHS compliant connector offers a 1.27mm pitch and is designed for telecom and datacom applications.
Voltage Rating125V
Current Rating1.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 95503-6891 technical specifications.
General
| Body Material | Thermoplastic |
| Color | Black |
| Contact Material | Copper Alloy, Copper, Brass |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 15.08mm |
| Direction | User Selectable |
| Gender | Female |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Length | 15.24mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 125V |
| Mount | Surface Mount |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Positions Loaded | 8 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 95503 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Voltage Rating | 125V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 95503-6891 Datasheet
Download the complete datasheet for Molex 95503-6891 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

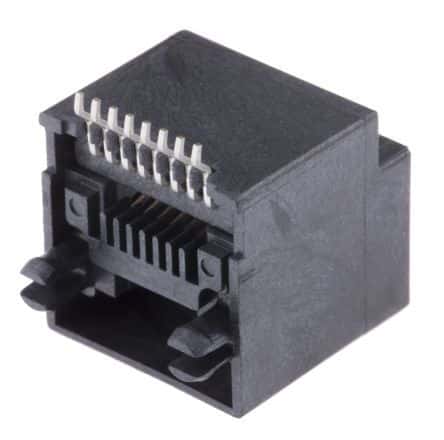

Product Images
