Technical Specifications
Molex MS-10-140 technical specifications.
General
Depth
28.58mm
Lead Free
Lead Free
Length
111.93mm
Max Current Rating
15A
Max Operating Temperature
148°C
Min Operating Temperature
-48°C
Max Supply Voltage (AC)
250V
Number of Rows
2
Orientation
Straight
Radiation Hardening
No
Reach SVHC Compliant
No
Series
140
Termination
Screw
DC Rated Voltage
250V
Wire/Cable Gauge
16AWG
Compliance
RoHS
Compliant
Datasheet
Molex MS-10-140 Datasheet
Download the complete datasheet for Molex MS-10-140 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

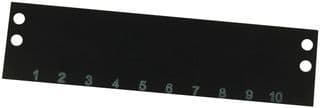

Product Images
