MTM Power
PCMA15S05
PSU, ENCAPSULATED, 5V, 3A; Power Supply Output Type:Fixed; Input Voltage AC Min:85V; Input Voltage AC Max:264V; Output Power Max:15W; Output Voltage Nom.:5V; Output Current Max:3A; SVHC:No SVHC (15-Jun-2015); Applications:General Purpose; Approval Bodies:CE, cUL, UL, VDE; Efficiency:70%; External Depth:23mm; External Length / Height:110mm; External Width:50.8mm; Height:23mm; Input Frequency:50Hz; Length:110mm; Mounting Type:Chassis; No. of Outputs:1; Output Current:3A; Output Voltage:5V; Power Rating:15W; Power Supply Type:Switch Mode; Supply Voltage:240V; Supply Voltage Max:264VAC; Supply Voltage Min:85VAC; Width:50.8mm
MountingChassis
Quick Jump:
Technical Specifications
MTM Power PCMA15S05 technical specifications.
General
Current - Output 1
3A
Efficiency
70%
Height
23mm
Length
110mm
Max Input Voltage
264V
Min Input Voltage
85V
Max Output Current
3A
Max Output Power
15W
Max Supply Voltage
264V
Min Supply Voltage
85V
Mount
Chassis
Nominal Output Voltage
5V
Number of Outputs
1
Operating Supply Voltage
240V
Output Current
3A
Output Voltage
5V
Reach SVHC Compliant
No
Voltage - Output 1
5V
Width
50.8mm
Compliance
RoHS
Compliant
Datasheet
MTM Power PCMA15S05 Datasheet
Download the complete datasheet for MTM Power PCMA15S05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

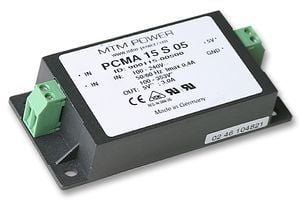

Product Images
