MTM Power
PCMA30S24
PSU, ENCAPSULATED, 24V, 1.3A; Power Supply Output Type:Fixed; Input Voltage AC Min:85V; Input Voltage AC Max:264V; Output Voltage Nom.:24V; Output Current Max:1.3A; Output Power Max:30W; SVHC:No SVHC (16-Jun-2014); Applications:General Purpose; Approval Bodies:CE, cUL, UL, VDE; Efficiency:77%; External Depth:33mm; External Length / Height:120mm; External Width:65mm; Height:33mm; Input Frequency:50Hz; Length:110mm; Mounting Type:Chassis; No. of Outputs:1; Output Current:1.3A; Output Voltage:24V; Power Rating:30W; Power Supply Type:Switch Mode; Supply Voltage:240V; Supply Voltage Max:264VAC; Supply Voltage Min:85VAC; Width:65mm
MountingChassis
Quick Jump:
Technical Specifications
MTM Power PCMA30S24 technical specifications.
General
Current - Output 1
1.3A
Efficiency
77%
Height
33mm
Length
110mm
Max Input Voltage
264V
Min Input Voltage
85V
Max Output Current
1.3A
Max Output Power
30W
Max Supply Voltage
264V
Min Supply Voltage
85V
Mount
Chassis
Nominal Output Voltage
24V
Number of Outputs
1
Operating Supply Voltage
240V
Output Current
1.3A
Output Voltage
24V
Reach SVHC Compliant
No
Voltage - Output 1
24V
Width
65mm
Compliance
RoHS
Compliant
Datasheet
MTM Power PCMA30S24 Datasheet
Download the complete datasheet for MTM Power PCMA30S24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

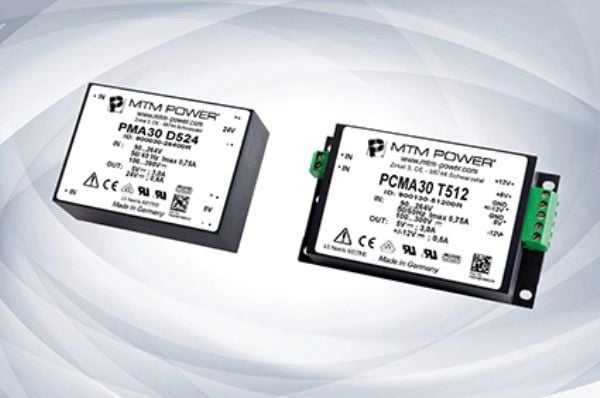

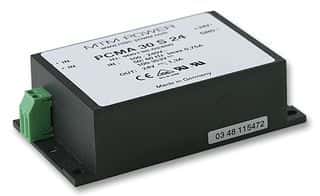

Product Images
