Multicomp
1251SM-11
HEADER, VERTICAL, 11WAY; Product Range:1251SM Series; Contact Termination Type:Through Hole; Gender:Header; No. of Contacts:11; Pitch Spacing:1.25mm; Contact Plating:Tin Plated Contacts; Contact Material:Phosphor Bronze; No. of Rows:1; SVHC:No SVHC (15-Jun-2015); Contact Resistance:20mohm; Contact Termination:Crimp; Current Rating:1A; Flammability Rating:UL94V-0; Insulation Resistance:100Mohm; Lead Spacing:1.25mm; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Termination Method:Crimp; Voltage Rating V AC:125V; Withstand Voltage:250V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Multicomp 1251SM-11 technical specifications.
General
Contact Material
Bronze
Contact Plating
Tin
Current Rating
1A
Flammability Rating
UL94 V-0
Gender
Male
Lead Pitch
1.25mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
11
Number of Rows
1
Termination
Crimp
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
Multicomp 1251SM-11 Datasheet
Download the complete datasheet for Multicomp 1251SM-11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

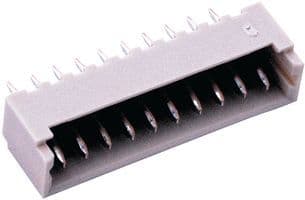

Product Images
