Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Multicomp 2000P-20G-220-01 technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Current Rating
500mA
Flammability Rating
UL94 V-0
Gender
Male
Lead Pitch
0.5mm
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Number of Contacts
20
Number of Rows
2
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.5mm
Series
2000P
Termination
SMD/SMT
Voltage Rating (AC)
50V
Compliance
RoHS
Compliant
Datasheet
Multicomp 2000P-20G-220-01 Datasheet
Download the complete datasheet for Multicomp 2000P-20G-220-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

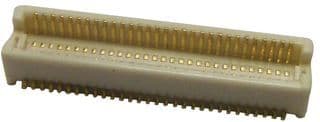

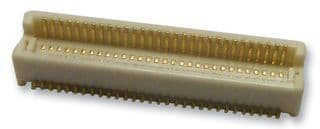

Product Images
