Capacitance5pF
MountingThrough Hole
Quick Jump:
Technical Specifications
Multicomp PI101900 technical specifications.
General
Capacitance
5pF
Contact Current Rating
100mA
Flammability Rating
UL94 V-0
Lead Pitch
2.54mm
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Through Hole
Number of Circuits
10
Operating Force
7.84N
Reach SVHC Compliant
Unknown
Row Spacing
7.62mm
Throw Configuration
SPST
Width
27.69mm
Compliance
RoHS
Compliant
Datasheet
Multicomp PI101900 Datasheet
Download the complete datasheet for Multicomp PI101900 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

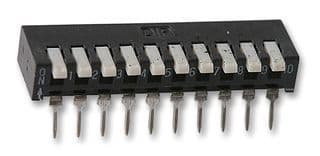

Product Images
