3-pin female XLR power connector with straight, through-hole mounting. Features silver-plated bronze contacts with gold plating, a nickel-plated metal body, and a 6A current rating. Operates within a -30°C to 80°C temperature range and has a 50V DC voltage rating. This IP40 rated connector is designed for solder termination.
PackageMetal
Voltage Rating50V
Current Rating6A
MountingThrough Hole
Quick Jump:
Technical Specifications
Neutrik NC3FD-V technical specifications.
General
Body Material
Metal
Package/Case
Metal
Color
Black, Silver
Contact Gender
Female
Contact Material
Bronze, Silver
Contact Plating
Silver, Gold
Current Rating
6A
Gender
Female
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Through Hole
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Orientation
Straight
Package Quantity
40
Plating
Nickel
Ratings
IP40
Reach SVHC Compliant
No
Series
D
Termination
Solder
Voltage Rating
50V
DC Rated Voltage
50V
Weight
1oz
Compliance
RoHS
Compliant
Datasheet
Neutrik NC3FD-V Datasheet
Download the complete datasheet for Neutrik NC3FD-V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

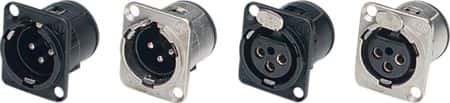

Product Images
